Heavy Electric Forklift Trucks 18-33 ton
High capacity lifting with heavy duty lift trucks
Contact expert
Kalmar ECG180-330 is the perfect solution for lifting heavy loads with zero emissions.
Kalmar’s electrically powered heavy forklift trucks can help improve the eco-efficiency of your operations while maintaining the highest levels of productivity and safety. The Kalmar Heavy Electric Forklift is ideal for lifting loads from 18-33 tonnes for the metal, forestry, concrete, automotive, energy and container handling sectors.
While this page highlights our high-capacity electric forklifts, we also offer great options for lighter and medium lifting needs. For nimble and efficient indoor tasks, our light electric forklifts (5-9 tonnes) are ideal. For tougher jobs, our medium forklifts (9-18 tonnes) provide superb versatility and performance. Both ranges deliver the same top performance and eco-friendly benefits as our high-capacity model. Ready to find the perfect fit? Click the links below to explore our light electric forklifts and medium electric forklifts.
The time is now: Going electric with all your forklift operations
During this webinar we will answer the most burning questions about going electric.
Technical information
| Informazioni tecniche | Information |
|---|---|
|
Capacità di sollevamento (kg)
|
18000-33000 |
|
Centro di carico (mm)
|
1200 |
|
Interasse (mm)
|
4000, 4250, 4750 |
|
Opzioni cabina
|
EGO & EGO OHG |
|
Power source [kWh]
|
Li-ion 163,245, 392 |
Frequently Asked Questions
Do electric forklifts deliver on power and productivity?
By combining a highly efficient electrically powered motor, with direct drive hydraulics you get a driveline combination that will deliver on power and productivity while producing zero carbon emissions at source, reducing your carbon footprint.
The complete system has been designed to minimise energy losses, and regenerative power from the braking system returns power to the batteries, further enhancing the overall efficiency of Kalmar’s Electric Forklift system.
How do I power my electric forklift?

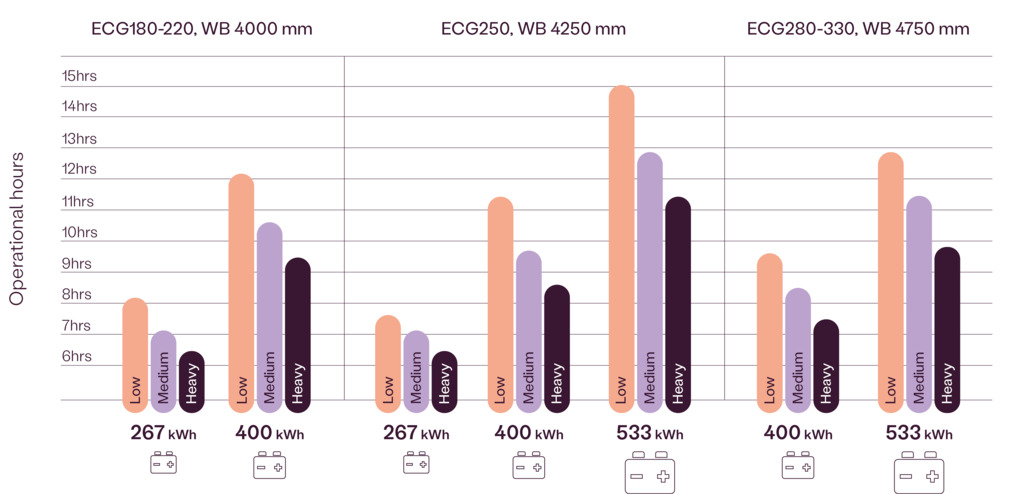

Batteries and chargers are a big part of your overall investment, making it critical that you get a solution that is matched to your operational requirements. This is why Kalmar has taken a modular approach to our battery and charging solutions. There are:
- four different charging solutions with charging capacities from 50-350 kW

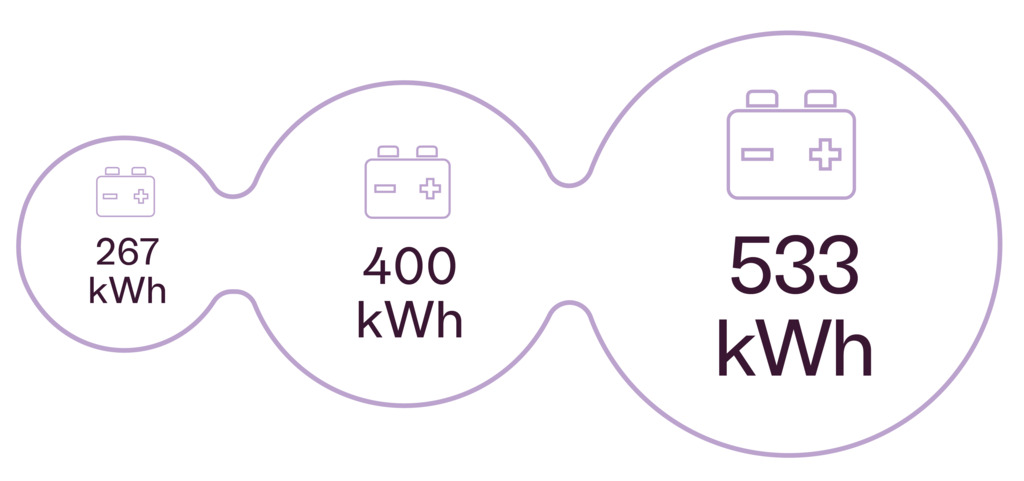

- three different Li-ion capacities to choose from.
Our battery solutions all come with a 5-year warranty and have an expected 10-12 year life*. Kalmar will help you work out which battery option and charging solution is right for your business based on your current work cycles.
* First life measured as 80% capacity left in the battery.
How do I manage my batteries?
Kalmar’s Battery Monitoring System continually monitors the:
- voltage
- temperature
- coolant
- current flow.
This ensures your electrically powered forklift operates optimally over its lifetime. The system also controls the charging of the batteries by redirecting recovered energy back into the battery packs making sure you are using the power available as efficiently as possible.
How safe is my electric forklift?
With any electrically powered high voltage system you need to be extra safe which is why we have encased and shielded all high voltage lines. Should any connection be interrupted, the whole system will automatically shut down keeping your team safe. Kalmar has specifically designed a high voltage training course to enhance the skills of your workers and keep them extra safe.
What can I lift with my heavy electric forklift?
Any load from 18-33 tonnes with the right mast and attachment fitted. Kalmar offers:
- three different lifting masts
- a range of forks and mounts
- an extensive range of attachments for most of your heavy lifting requirements.
A Kalmar Electric Heavy Forklift is ideal for moving containers, slabs, billets, pipes, coils, lumber, pulp, biomass material, concrete, building material and parts.
Is it a forklift, forklift truck, or a lift truck?
The versatile machine widely known as a forklift goes by many names, including lift trucks, forklift trucks, and hoist lifts. At Kalmar, however, the standardized term used across the product line is 'forklift truck', similar to the official equipment name used by many in the industry. For forklifts specifically designed to handle extremely heavy loads, Kalmar also use the terms 'heavy-duty forklifts' and 'high-capacity forklifts,' signifying their specialized capabilities. Regardless of the names used, these powerful tools all serve the crucial role of efficiently lifting and transporting heavy materials.
Industries and use cases for Kalmar heavy electric forklifts
Metal industry
Our electric heavy forklifts excel in the metal industry, with the ability to lift, stack, and transport metal slabs, blooms, billets, plates, coils, bars, and pipes. Specialty attachments such as magnets, clamps, grippers, and slings further enhance the efficiency and safety of handling metal components.
Concrete and heavy industry
Kalmar's heavy forklifts are well-suited for lifting flat, round, or bulky concrete sections, wave-breakers, bricks, and rocks. They are also well-suited for the energy sector, efficiently handling hardware and supplies for oil & gas offshore sites, biomass facilities, nuclear plants, as well as heavy loads for wind turbine manufacturers and their subcontractors.
Logistics and stevedoring
Whether you're moving containers, handling breakbulk cargo, or require efficient material handling for heavy project cargo or RoRo applications, Kalmar's high capacity forklifts deliver the reliability and safety you need.
Rail and railroad cargo handling

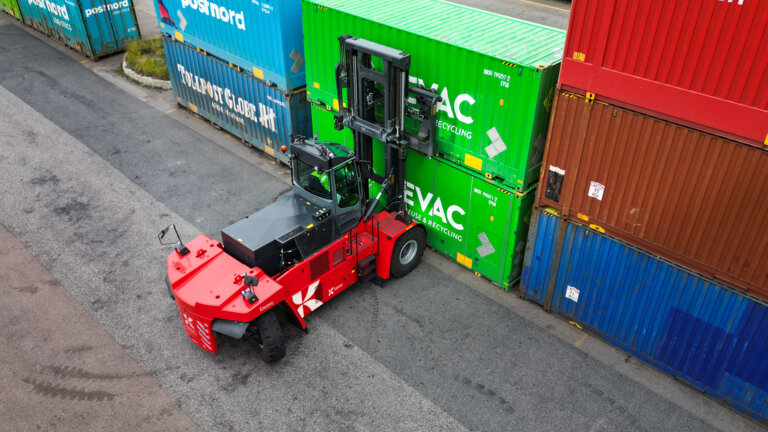

Our heavy duty electric forklifts with 360-degree fork rotators excel in the handling of railroad cargo, making the transport and stacking of containers seamless and efficient.
Does Kalmar offer other electrically powered forklift trucks?
While you may be currently exploring our high-capacity fully-electric ECG180-330 forklift trucks, it’s worth mentioning that Kalmar also offers a comprehensive range of electric forklifts, powered by both lead-acid and advanced lithium-ion batteries, to meet all your material handling needs.
At Kalmar, we understand that versatility and efficiency are crucial for any industrial application. That’s why our electric forklift lineup spans a variety of lifting capacities, from lightweight models capable of handling 5-9 tons, up to heavy-duty options that can handle an impressive 33 tonnes. Our fleet is powered by both lead-acid and advanced lithium-ion batteries, ensuring we can provide the perfect solution for every situation, whether it’s indoor warehouse tasks or extensive outdoor operations.
Kalmar's dedication to electric forklift innovation dates back to 1979. Today, we're proud to offer our customers cutting-edge, eco-friendly options that do not compromise on performance or productivity. More than one-third of Kalmar forklift trucks in Europe are electrically powered, highlighting our leadership in embracing sustainable material handling solutions.
Each electric forklift in our range is meticulously built to match the capabilities of diesel-powered equivalents. For those in the forestry, timber, paper, metal handling, or concrete production sectors, our electric forklifts offer remarkable efficiencies. Light Electric Forklifts (5-9 ton) perform superbly for precise indoor work and tight spaces, while Medium Electric Forklift Trucks 9-18 ton and heavy trucks excel in tougher, more demanding outdoor environments.
